Handrail 2-57/64"
Handrail 2-57/64"

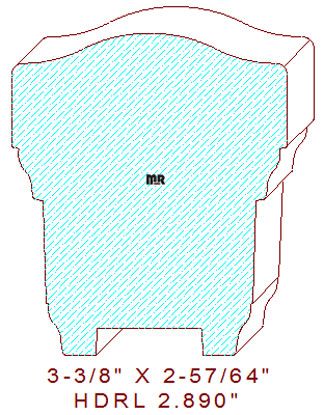

This 2-57/64" handrail measures wide by 3-3/8" tall. The profile has a smooth, free-flowing, reverse radius top with eased edges. The sides are composed of straight and angled fillets connected by shallow ogee details. The template-ready dxf file contains three patterns: top, left, right, and bottom; it will require four machining stations on an industrial moulder to manufacture this profile.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
