Handrail 2-15/16" - 1

Handrail 2-15/16" - 1

Handrail 2-15/16" - 1

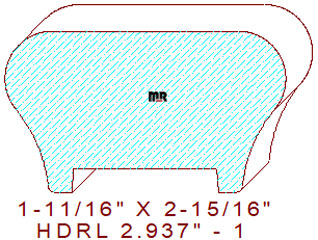

This unpretentious 2-15/16" - 1 handrail measures 2.937" wide by 1.687" thickness, permitting the design to be milled out of eight-quarter lumber. The basic profile is milled from both the right & left cutter heads on the molder. This enables the width to be produced to any desired size within the parameters of the machinery used to cut the detail. The functional pattern is composed of a 1-15/16" wide flat line segment on top. The sides are comprised of a 1/2" radius convex arc tangent to a 1-1/2" concave semicircle; this area provides the gripping portion on the railing, the bottom of the design retains a 1-1/2" wide by 1/4" deep dado for the balusters with 3/64" eased edges on both sides.

Need this profile template and a set of moulding knives quickly? We generally can have these cutters ground with any one of our premium quality high-speed steels or carbide and shipped within twenty-four hours. We have artistic profiles from several different architectural eras; thousands of compelling designs help match your creative style.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.687
Depth of Cut: 0.688
Left Cutter Head
Thickness: 1.687
Depth of Cut: 0.688
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 2.937
Depth of Cut: 0.250

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$174.60
$131.60
(Template not needed)
Not Needed
$227.35
Total:
$533.55
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$184.35
$141.35
(Template not needed)
Not Needed
$242.10
Total:
$567.79
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$194.09
$151.09
(Template not needed)
Not Needed
$256.85
Total:
$602.03
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
