Handrail 3"

Handrail 3"

Handrail 3"

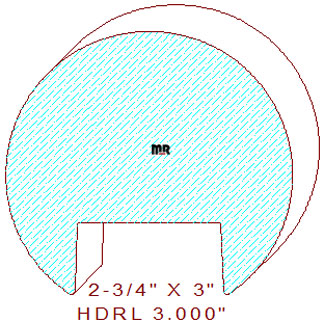

This 3" round handrail measures 3.000" wide by 2.750" thickness. The circular profile is comprised of a 1-1/2" radius full circle with a 1-1/2" wide by 3/4" tall dado milled into the bottom for the balusters. Our high-precision templates and knives include the required draft angles to maintain the ability to sharpen the blades properly without modifying the detail while simultaneously prolonging the milling time between sharpening.

This cad-generated dxf file contains three professionally designed profile template drawings with abundant information to create cutters for this beautiful round handrail detail. We always provide sufficient blend areas in the knives so no one will ever realize where one cutter begins or ends.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 2.750
Depth of Cut: 0.597
Left Cutter Head
Thickness: 2.750
Depth of Cut: 0.597
Top Cutter Head
Width: 3.000
Depth of Cut: 0.562
Bottom Cutter Head
Width: 3.000
Depth of Cut: 0.750

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$218.00
$175.00
(Template not needed)
$230.50
$245.50
Total:
$869.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$232.00
$189.00
(Template not needed)
$245.50
$260.50
Total:
$927.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$246.00
$203.00
(Template not needed)
$260.50
$275.50
Total:
$985.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
