Handrail 3" - 1

Handrail 3" - 1

Handrail 3" - 1

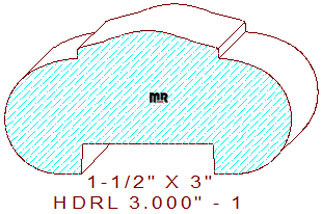

This unique 3" - 1 handrail measures 3.000" wide by 1-1/2" thick. The beautiful profile is comprised of a bidirectional cyma reversa with 1/8" vertical steps on top, flanked by a two-tangent radius elliptical-shaped half circle on each side edge with a 1-3/8" wide by 5/16" deep dado for the balusters on the bottom.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.500
Depth of Cut: 0.916
Left Cutter Head
Thickness: 1.500
Depth of Cut: 0.916
Top Cutter Head
Width: 3.000
Depth of Cut: 0.245
Bottom Cutter Head
Width: 3.000
Depth of Cut: 0.312

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$164.50
$121.50
(Template not needed)
$230.50
$230.50
Total:
$747.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$173.50
$130.50
(Template not needed)
$245.50
$245.50
Total:
$795.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$182.50
$139.50
(Template not needed)
$260.50
$260.50
Total:
$843.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
