Handrail 3" - 11
Handrail 3" - 11

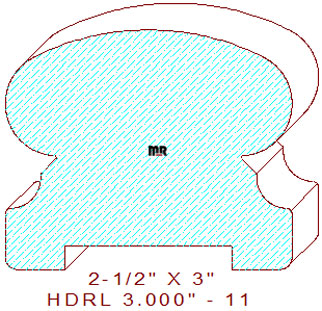

This creative 3" - 11 handrail measures 3.000" wide by 2.500" thickness, allowing the detail to be machined from glued-up pieces of four, five, six, or eight-quarter lumber. The fancy profile is composed of an elliptical-shaped three-quarter round arc on top, attached to a slight chamfer that transitions into a comfortable finger-gripping cove on the sides, joined to a 41/64" tall vertical line segment with a 1/8" round-over on the lower sides, the bottom retains a 1-3/4" wide by 1/4" tall dado for the balusters or balustrade.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.500
Depth of Cut: 0.532
Left Cutter Head
Thickness: 2.500
Depth of Cut: 0.532
Top Cutter Head
Width: 3.000
Depth of Cut: 0.348
Bottom Cutter Head
Width: 3.000
Depth of Cut: 0.250
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$213.00
$169.00
(Template not needed)
$239.00
$239.00
Total:
$860.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$226.00
$182.00
(Template not needed)
$254.00
$254.00
Total:
$916.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$245.50
$201.50
(Template not needed)
$276.50
$276.50
Total:
$1000.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
