Handrail 3" - 12

Handrail 3" - 12

Handrail 3" - 12

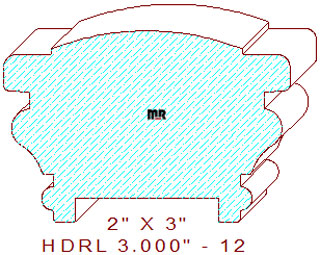

This unique 3" - 12 handrail measures 3.000" wide by 2.000" tall, permitting the pattern to be milled out of ten-quarter lumber or glued up pieces of smaller-sized planks. The sophisticated symmetrical profile is composed of a 2-49/64" radius semicircular arc with a 1/16" vertical step and a 1/2" broad line segment with 1/8" rounded edges on top. The balanced sides are comprised of a 3/16" vertical line with a 1/16" eased edge joined to a 3/16" sunk fillet in the upper portion, connected to a two tangent radius cyma reversa with another sunk fillet in the center, attached to a decorative 1/4" half round bead and a 1/8" fillet with 3/64" broken edges in the lower section, the bottom dado designed for balusters measures 1-1/2" wide by 1/4" deep.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 2.000
Depth of Cut: 0.718
Left Cutter Head
Thickness: 2.000
Depth of Cut: 0.718
Top Cutter Head
Width: 3.000
Depth of Cut: 0.531
Bottom Cutter Head
Width: 3.000
Depth of Cut: 0.250

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$191.50
$148.50
(Template not needed)
$230.50
$230.50
Total:
$801.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$202.50
$159.50
(Template not needed)
$245.50
$245.50
Total:
$853.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$213.50
$170.50
(Template not needed)
$260.50
$260.50
Total:
$905.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
