Handrail 3" - 13

Handrail 3" - 13

Handrail 3" - 13

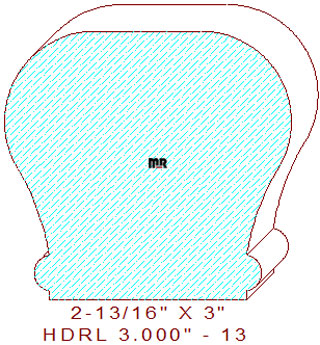

This bulb-shaped 3" - 13 handrail measures 3.000" wide by 2.812" tall, making the detail machined out of glued-up pieces of various-sized lumber. The colonial profile is milled from both the right & left cutter heads; this allows the width to be produced to any desired size within the parameters of the machinery used to cut the detail. The modest pattern is composed of a 1-7/64" broad flat line on top, the sides consist of a 61/64" radius convex arc in the upper portion, tangent to a 2-33/64" concave semicircle that creates the finger grip area in the center, joined to a decorative 3/8" tall bead with a 3/32" vertical line segment on the bottom edge of the design.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 2.812
Depth of Cut: 1.062
Left Cutter Head
Thickness: 2.812
Depth of Cut: 1.062
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$235.35
$192.35
(Template not needed)
Not Needed
Not Needed
Total:
$427.70
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$249.60
$206.60
(Template not needed)
Not Needed
Not Needed
Total:
$456.19
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$263.84
$220.84
(Template not needed)
Not Needed
Not Needed
Total:
$484.69
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
