Handrail 3" - 14
Handrail 3" - 14

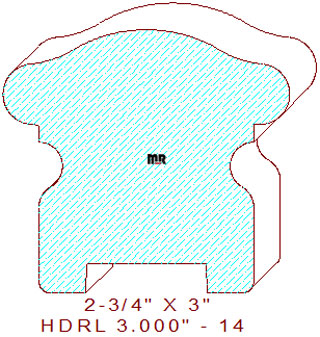

This custom 3" - 14 handrail measures 3.000" wide by 2.750" tall, allowing the detail to be machined from glued-up pieces of four, five, six, or eight-quarter lumber. The designer profile comprises a wave-like two tangent radius semicircular arcs on the top. The symmetrical sides consist of a protruding 21/32" tall half-round bead in the upper portion, connected to a 3/16" tall fillet that transitions into a 1/4" concave finger gripping area, tangent to a 1/4" convex arc with a 57/64" tall, straight line and a 1/8" round-over in the lower section, the bottom retains a 1-1/4" wide by 5/16" deep dado for balusters to fit into when installed.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.750
Depth of Cut: 0.687
Left Cutter Head
Thickness: 2.750
Depth of Cut: 0.687
Top Cutter Head
Width: 3.000
Depth of Cut: 0.361
Bottom Cutter Head
Width: 3.000
Depth of Cut: 0.313
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$239.00
$196.00
(Template not needed)
$238.00
$238.00
Total:
$911.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$253.00
$210.00
(Template not needed)
$253.00
$253.00
Total:
$969.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$274.00
$231.00
(Template not needed)
$275.50
$275.50
Total:
$1056.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
