Handrail 3" - 15
Handrail 3" - 15

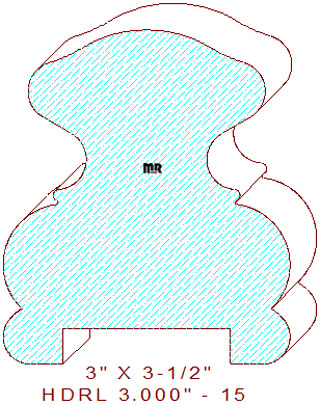

This extravagant 3" - 15 handrail measures 3.000" wide by 3.500" tall, requiring the design to be machined out of glued-up pieces of four, five, six, or eight-quarter lumber. The custom profile comprises a wave with two tangent radius semicircular arcs on top. The symmetrical sides consist of a recessed 9/16" tall half-round bead in the upper portion, tangent to a free-flowing comfortable finger gripping area in the center. The lower portion is comprised of a tiny 1/8" bead joined to a larger 1-3/32" bulging semicircle that merges with a 37/64" tall half round on the bottom side edges, the plow for the balusters measures 1-3/4" wide by 3/8" deep.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 3.500
Depth of Cut: 0.869
Left Cutter Head
Thickness: 3.500
Depth of Cut: 0.869
Top Cutter Head
Width: 3.000
Depth of Cut: 0.400
Bottom Cutter Head
Width: 3.000
Depth of Cut: 0.375
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$281.00
$238.00
(Template not needed)
$238.00
$238.00
Total:
$995.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$298.00
$255.00
(Template not needed)
$253.00
$253.00
Total:
$1059.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$323.50
$280.50
(Template not needed)
$275.50
$275.50
Total:
$1155.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
