Handrail 3" - 2
Handrail 3" - 2

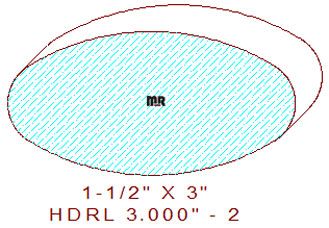

This elliptical/oval 3" - 2 handrail measures 3.000" wide by 1.500" wide. The profile is comprised of .459" radiuses on the sides and 2.466" radiuses on both the top and bottom. A dado could be milled in the bottom to secure the rail to a bracket for mounting on the wall.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.500
Depth of Cut: 0.374
Left Cutter Head
Thickness: 1.500
Depth of Cut: 0.374
Top Cutter Head
Width: 3.000
Depth of Cut: 0.471
Bottom Cutter Head
Width: 3.000
Depth of Cut: 0.471
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.00
$117.00
(Template not needed)
$239.00
$195.00
(Template not needed)
Total:
$712.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$170.00
$126.00
(Template not needed)
$254.00
$210.00
(Template not needed)
Total:
$760.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$183.50
$139.50
(Template not needed)
$276.50
$232.50
(Template not needed)
Total:
$832.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
