Handrail 3" - 21
Handrail 3" - 21

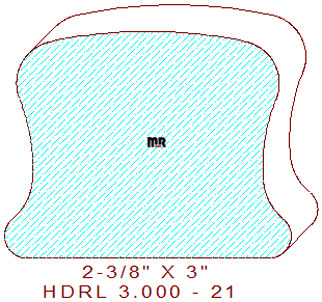

This graceful 3" - 21 handrail measures 3.000" width by 2.375" thickness, requiring the use of glued-up pieces of four, five, and six-quarter lumber for milling on a commercial-grade molder. The lovely pattern contains a 4-29/32" radius convex semicircular arc on top. The sides retain 29/64" bowed outer edges at a 2-3/4" width in the upper portion. The center finger grip area consists of two tangent radiuses that transition into a 15/64" half-circle on the bottom edges, forming the full width at three inches.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.375
Depth of Cut: 0.625
Left Cutter Head
Thickness: 2.375
Depth of Cut: 0.625
Top Cutter Head
Width: 3.000
Depth of Cut: 0.233
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$205.50
$162.50
(Template not needed)
$238.00
Not Needed
Total:
$606.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$218.00
$175.00
(Template not needed)
$253.00
Not Needed
Total:
$646.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$236.75
$193.75
(Template not needed)
$275.50
Not Needed
Total:
$706.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
