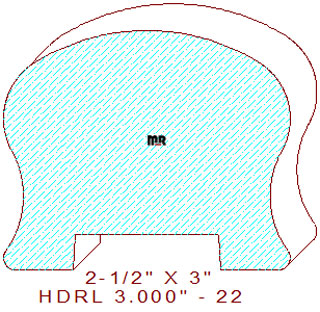

This modest 3" - 22 handrail measures 3.000" width by 2.500" thickness, necessitating the use of glued-up pieces of four, five, and six-quarter lumber for milling on a commercial-grade molder. The subtle pattern contains a 2-7/32" radius convex semicircular arc on top. The sides retain an 11/16" bowed outer edge in the upper portion, tangent to a 63/64" concave semicircle creating the center's finger grip area, with a 1/4" tall half-circle on the lower corners of the design. The plow dimensions for the balusters on the bottom is 1-1/2" wide by 3/8" deep leaving a 3/4" width measurement on each side of the dado.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.500
Depth of Cut: 0.500
Left Cutter Head
Thickness: 2.500
Depth of Cut: 0.500
Top Cutter Head
Width: 3.000
Depth of Cut: 0.491
Bottom Cutter Head
Width: 3.000
Depth of Cut: 0.375
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$212.00
$169.00
(Template not needed)
$238.00
$238.00
Total:
$857.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$225.00
$182.00
(Template not needed)
$253.00
$253.00
Total:
$913.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$244.50
$201.50
(Template not needed)
$275.50
$275.50
Total:
$997.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
