Handrail 3" - 23
Handrail 3" - 23

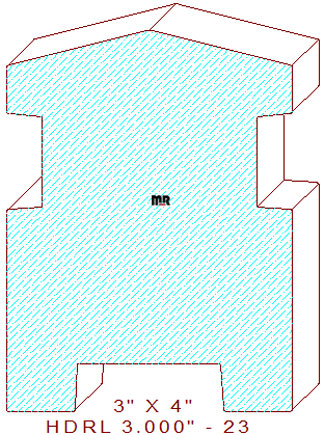

This hefty modern 3" - 23 handrail measures 3.000" width by 4.000" thickness, requiring glued-up pieces of four, five, six, or eight-quarter lumber for milling on an industrial molder. The bold pattern contains a bidirectional fourteen-angled top with a 1/8" rounded point in the center. The symmetrical sides retain a 17/32" fillet in the upper portion, connected to a one-inch tall by 3/8" deep channel that forms the finger grip area, merged with a 2-1/8" tall vertical line in the lower section. All the corners within the design have 3/64" eased edges to aid in the finishing process. The plow dimension for the balusters on the bottom is 1-1/2" wide by 1/2" deep, leaving a 3/4" width measurement on each side edge of the dado.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 4.000
Depth of Cut: 0.375
Left Cutter Head
Thickness: 4.000
Depth of Cut: 0.375
Top Cutter Head
Width: 3.000
Depth of Cut: 0.593
Bottom Cutter Head
Width: 3.000
Depth of Cut: 0.500
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$290.00
$247.00
(Template not needed)
$238.00
$238.00
Total:
$1013.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$309.00
$266.00
(Template not needed)
$253.00
$253.00
Total:
$1081.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$337.50
$294.50
(Template not needed)
$275.50
$275.50
Total:
$1183.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
