Handrail 3" - 24
Handrail 3" - 24

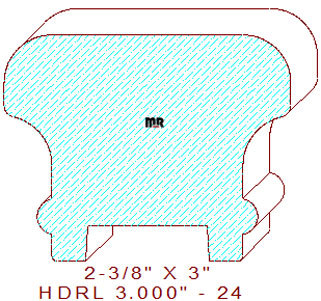

This fancy 3" - 24 handrail measures 3.000" width by 2.375" thickness, necessitating the use of glued-up pieces of four, five, and six-quarter lumber for milling on a commercial moulder. The stylish pattern contains a three-inch wide flat top with 1/2" rolled edges. The sides retain a 23/64" vertical line with a 1/8" eased edge that transitions into a 7/8" tall congee derived from a 17/32" concave semicircle, creating the finger grip area in the center. The lower portion holds a 3/8" tall decorative bead and a 3/8" tall vertical fillet with a 1/16" eased corner. The bottom plowed dimension for the balusters is 1-1/4" wide by 3/8" deep, leaving a 3/8" wide section on each side edge of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.375
Depth of Cut: 0.719
Left Cutter Head
Thickness: 2.375
Depth of Cut: 0.719
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 3.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$218.00
$175.00
(Template not needed)
Not Needed
Not Needed
Total:
$393.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$230.50
$187.50
(Template not needed)
Not Needed
Not Needed
Total:
$418.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$249.25
$206.25
(Template not needed)
Not Needed
Not Needed
Total:
$455.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
