Handrail 3" - 25
Handrail 3" - 25

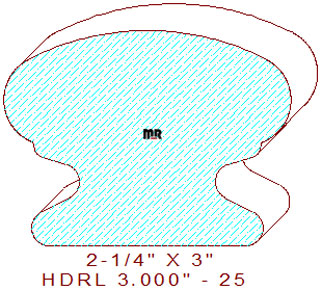

This opulent 3" - 25 handrail measures 3.000" width by 2.250" thickness, necessitating the use of glued-up pieces of four, five, and six-quarter lumber for milling on a commercial-grade molder. The elegant pattern contains a 2-45/64" radius convex arc on the top. The graceful symmetrical sides retain a 15/16" tall half-round at the broadest point, connected to a 1/8" quarter-circle that transitions into the classy finger grip area with a semi-elliptical-shaped bottom.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.250
Depth of Cut: 0.789
Left Cutter Head
Thickness: 2.250
Depth of Cut: 0.789
Top Cutter Head
Width: 3.000
Depth of Cut: 0.459
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$211.00
$168.00
(Template not needed)
$238.00
Not Needed
Total:
$617.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$223.00
$180.00
(Template not needed)
$253.00
Not Needed
Total:
$656.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$241.00
$198.00
(Template not needed)
$275.50
Not Needed
Total:
$714.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
