Handrail Moulding 3" - 26

Handrail Moulding 3" - 26

Handrail Moulding 3" - 26

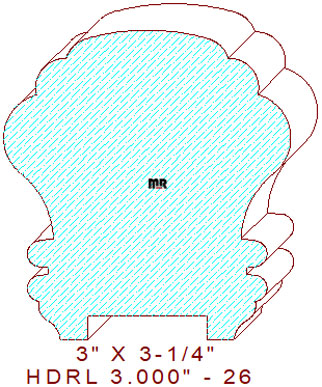

This creative ornate handrail molding 3" - 26 measures 3.000" width by 3.250" thickness, requiring the use of glued-up pieces of four, five, and six quarter lumber for milling on a commercial-grade molder. The intricate pattern contains a 21/64" semicircular arc flanked by two tangent 5/16" partial circles on top. The symmetrical sides retain a 5/16" quarter-bead; joined to a two tangent radius-shaped curvature that creates a sturdy and supportive finger grip area in the center. The lower section enthralls two half-circles divided by a sunk fillet, and a small ogee with a 3/64" eased edge. The plow dimensions for the balusters or balustrade on the bottom is 1-1/4" wide by 1/4" deep, leaving a 9/32" width measurement on each side of the dado.

Custom-made elegance is a phrase used to define the beauty, style, and artisanship of thousands of our molding designs. If you own a recently built house or older residence, we have the professional ability, knowledge, and experience to create and produce visually stunning details that will complement the architectural setting of your elegant home and office.

For molding knife quoting purposes, click on the calculator below; we supplied only the important measurements; enter the appropriate dimensions in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.000" / Depth of Cut = .296" (top knives) & .250" (bottom cutters).

Thickness = 3.250" / Depth of Cut = .815" (right blades) & .815" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
