Handrail 3" - 27

Handrail 3" - 27

Handrail 3" - 27

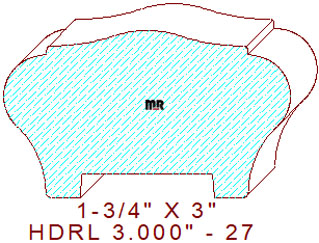

This luxurious 3" - 27 handrail measures 3.000" width by 1.750" thickness, enabling the use of solid eight-quarter lumber for milling on a commercial molder. The beautiful, stylish pattern contains a shallow bidirectional wave-like curvature with a 3/32" vertical step on top. Both sides consist of a 27/64" convex arc tangent to a 63/64" concave semicircle, creating an elegant ear-shaped finger grip area with 1/16" rolled corners in the lower portion. The plow dimension for the baluster on the bottom is 1-3/8" wide by 1/4" deep, leaving a 3/8" width measurement on each side edge of the dado.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.750
Depth of Cut: 0.678
Left Cutter Head
Thickness: 1.750
Depth of Cut: 0.678
Top Cutter Head
Width: 3.000
Depth of Cut: 0.162
Bottom Cutter Head
Width: 3.000
Depth of Cut: 0.250

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$178.00
$135.00
(Template not needed)
$230.50
$230.50
Total:
$774.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$188.00
$145.00
(Template not needed)
$245.50
$245.50
Total:
$824.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$198.00
$155.00
(Template not needed)
$260.50
$260.50
Total:
$874.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
