Handrail Moulding 3" - 28

Handrail Moulding 3" - 28

Handrail Moulding 3" - 28

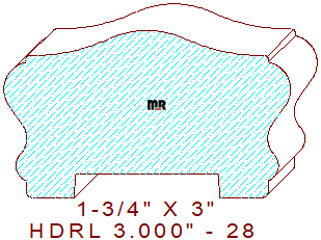

This fashionable handrail molding 3" - 28 measures 3.000" width by 1.750" thickness allowing the use of solid eight quarter lumber for milling on an industrial-grade molder. The chic pattern contains a superficial bidirectional wave-like curvature with a 5/64" vertical step on top. Both sides consist of a 9/32" convex arc tangent to a 1/4" concave semicircle creating a functional finger grip area that transitions into an 11/64" decorative convex bead and an 11/64" vertical fillet, with a 3/64" rounded corner in the lower portion. The plow dimensions for the balusters or balustrade on the bottom is 1-1/2" wide by 1/4" deep, leaving a 1/2" width measurement on each side edge of the dado.

This template ready cad generated dxf file (purchase in the link below) contains three skillfully drafted template designs for producing profile cutters for this creative handrail pattern. All our innovative profiles have a proven unbroken computer numerical control (CNC) tool path, making your job a lot easier the production process.

For molding knife quoting purposes, click on the calculator below; we supplied only the important measurements; enter the appropriate dimensions in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.000" / Depth of Cut = .263" (top knives) & .250" (bottom cutters).

Thickness = 1.750" / Depth of Cut = .458" (right blades) & .458" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
