Handrail 3" - 5
Handrail 3" - 5

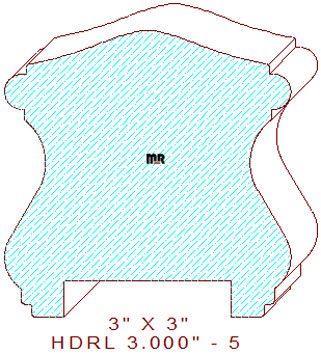

This colonial 3" - 5 handrail measures 3.000" width by 3.000" thickness, necessitating the use of glued-up pieces of four, five, six, or eight-quarter lumber for machining on an industrial molder. The elegant pattern contains a 25/64" radius point tangent to two shallow 3-13/16" concave arcs on the top. The lovely sides consist of a 3/8" tall half-circle flaked by vertical fillet in the upper portion. This area connects to a sumptuous s-shaped curvature, forming the finger grip area in the center. Attached to a decorative set of perpendicular stepped lines in the lower portion of the design. The plow dimension for the balusters on the bottom is 1-3/4" wide by 3/8" deep, leaving an 11/32" width measurement on each side edge of the dado.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 3.000
Depth of Cut: 0.490
Left Cutter Head
Thickness: 3.000
Depth of Cut: 0.490
Top Cutter Head
Width: 3.000
Depth of Cut: 0.415
Bottom Cutter Head
Width: 3.000
Depth of Cut: 0.375
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$238.00
$195.00
(Template not needed)
$238.00
$238.00
Total:
$909.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$253.00
$210.00
(Template not needed)
$253.00
$253.00
Total:
$969.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$275.50
$232.50
(Template not needed)
$275.50
$275.50
Total:
$1059.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
