Handrail Moulding 3-1/8"

Handrail Moulding 3-1/8"

Handrail Moulding 3-1/8"

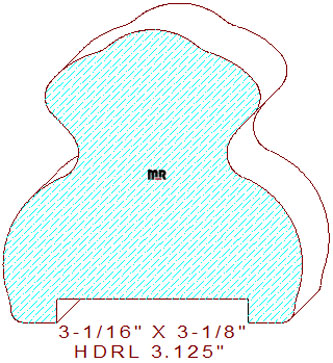

This unique handrail molding 3-1/8" measures 3.125" width by 3.062" tall, necessitating the use of glued-up pieces of five, six or eight quarter lumber for milling on an industrial molder. The beautiful hefty pattern contains a series of five convex and concave semicircular ars on top. The partial circle joins a slightly tapered 9/32" radius indentation forming the finger grip area in the upper portion, merged with a bulging two tangent radius arc that transitions into a 1/8" rounded corner in the lower portion of the design. The plow dimensions for the balusters or balustrade on the bottom is 2" wide by 1/2" deep, leaving a 7/16" width measurement on each side edge of the dado.

Utilize our enchanting patterns to create a stylish molding catalog for your millwork company, or, simply connect our catalog to your website, offer more eye-catching profiles and give your clients more knowledge about our industry while reducing production cost spent on molding knife design. Let us help you in the remodel of that beautiful house in the transformation into an elegant home.

For molding knife quoting purposes, click on the calculator below; we supplied only the important measurements; enter the appropriate dimensions in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.125" / Depth of Cut = 1.000" (top knives) & .250" (bottom cutters).

Thickness = 3.062" / Depth of Cut = .788" (right blades) & .788" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
