Handrail 3-3/16"
Handrail 3-3/16"

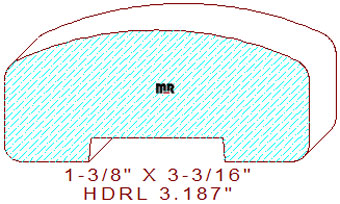

This modern 3-3/16" handrail measures 3.187" wide by 1.375" thickness, permitting the detail to be machined out of six-quarter lumber. The arched profile is composed of a 3-15/32" radius semicircular arc on the top, both sides consists of a 1/4" round-over on top and a 3/16" eased edge on the lower corners, the bottom retains a 1-3/8" wide by 1/4" deep dado for the balusters or balustrade. We offer a few other similar profiles in a 2-1/2" width for your review and consideration, handrail 2.500" - 21 and another detail in a slightly larger width, handrail 2.500" - 39".
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.187
Depth of Cut: 0.694
Bottom Cutter Head
Width: 3.187
Depth of Cut: 0.250
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$263.47
$247.72
Total:
$511.20
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$279.22
$263.47
Total:
$542.69
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$302.84
$287.09
Total:
$589.94
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
