Handrail Moulding 3-1/4"

Handrail Moulding 3-1/4"

Handrail Moulding 3-1/4"

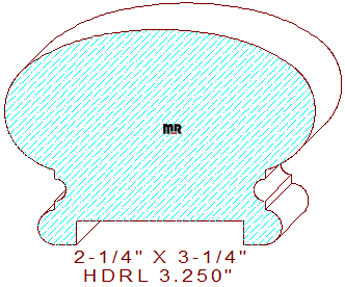

This sophisticated handrail molding 3-1/4", measures 3.250" wide by 2.250" thickness, allowing the pattern to be machined out of glued up pieces of four, five, and six quarter lumber. The beautiful profile is comprised of a 3-7/32" convex arc on top, tangent to two 1-15/16" semicircular arc on the sides, creating the oval appearance. The lower portion of the sides retain a decorative 15/64" tall hollow half flute flanked by 3/32" vertical line segments, joined to a 23/64" convex half bead on the lower section. The bottom retains a 1-3/4" wide by 1/4" deep dado for the balusters.

Architects, interior designers, contractors, lumber mills, cabinet shops, and molding manufacturers are utilizing our wide variety of molding designs. We trust you will find that special profile to enhance the architectural style of your client's home or office. Download all our free dxf files, see how easy the services we provide can increase productivity while simultaneously reducing manufacturing cost.

For molding knife quoting purposes click to open the calculator below, we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.250" / Depth of Cut = .526" (top knives) & .250" (bottom cutters).

Thickness = 2.250" / Depth of Cut = .687" (right blades) & .687" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
