Handrail 3-1/4" - 12

Handrail 3-1/4" - 12

Handrail 3-1/4" - 12

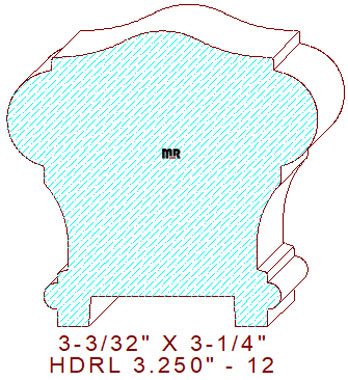

This gorgeous 3-1/4" - 12 handrail measures 3.250" wide by 3.093" thickness, enabling the pattern to be machined out of glued-up pieces of four, five, six, and even eight quarter lumber. The opulent profile consists of a 25/32" radius convex arc, tangent to two 1-17/32" concave semicircles on top. The symmetrical sides contain a one inch tall half round flanked by a small vertical line segment. Joined to a 15/16" vertical congee derived from a 15/16" radius cove, creating the finger gripping area in the center. The lower portion retains a decorative, slightly obtuse lines with a 9/32" tall bead and a 3/16" tall line. The bottom has a 1-1/2" wide by 5/16" deep dado for inserting balusters, leaving an 11/32" shoulder on each edge of the design.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 3.093
Depth of Cut: 0.625
Left Cutter Head
Thickness: 3.093
Depth of Cut: 0.625
Top Cutter Head
Width: 3.250
Depth of Cut: 0.273
Bottom Cutter Head
Width: 3.250
Depth of Cut: 0.312

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$235.15
$192.15
(Template not needed)
$243.00
$243.00
Total:
$913.30
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$250.52
$207.52
(Template not needed)
$259.00
$259.00
Total:
$976.04
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$265.89
$222.89
(Template not needed)
$275.00
$275.00
Total:
$1038.79
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
