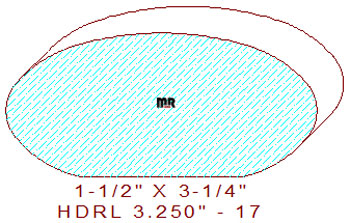

This elliptical 3-1/4" - 17 handrail measures 3.250" wide by 1.500" thickness, permitting the pattern to be milled out of glued-up pieces of four or solid eight-quarter lumber. The oval profile is comprised of a 3-3/32" radius convex semicircular arc on top. The sides are composed of a 1-5/16" radius that is tangent to the top and a 1-7/32" partial radius on the lower sides, leaving a 1-47/64" flat section on the bottom of the detail.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.500
Depth of Cut: 0.937
Left Cutter Head
Thickness: 1.500
Depth of Cut: 0.937
Top Cutter Head
Width: 3.250
Depth of Cut: 0.647
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$169.00
$126.00
(Template not needed)
$267.00
Not Needed
Total:
$562.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$178.00
$135.00
(Template not needed)
$283.00
Not Needed
Total:
$596.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$191.50
$148.50
(Template not needed)
$307.00
Not Needed
Total:
$647.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
