Handrail 3-1/4" - 2

Handrail 3-1/4" - 2

Handrail 3-1/4" - 2

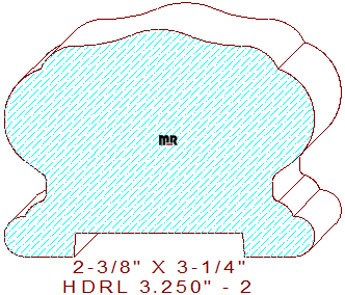

This beautiful 3-1/4" - 2 handrail measures 3.250" wide by 2.375" thickness, permitting the pattern to be machined out of glued-up pieces of four-, five-, six-, and even eight-quarter lumber. The grandiose symmetrical profile consists of a convex and concave five tangent radii wave-like arc on the top. The decorative sides consist of a 35/64" half-round tangent to a 9/32" tall finger grip area in the center. This section transitions into a quarter and half-round bead on the lower edges. The bottom retains a 1-3/4" wide by 1/4" deep dado for inserting balusters, leaving a 17/32" flat shoulder on each side of the design.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 2.375
Depth of Cut: 0.440
Left Cutter Head
Thickness: 2.375
Depth of Cut: 0.440
Top Cutter Head
Width: 3.250
Depth of Cut: 0.410
Bottom Cutter Head
Width: 3.250
Depth of Cut: 0.250

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.25
$156.25
(Template not needed)
$243.00
$243.00
Total:
$841.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$211.75
$168.75
(Template not needed)
$259.00
$259.00
Total:
$898.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$224.25
$181.25
(Template not needed)
$275.00
$275.00
Total:
$955.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
