Handrail 3-1/4" - 3

Handrail 3-1/4" - 3

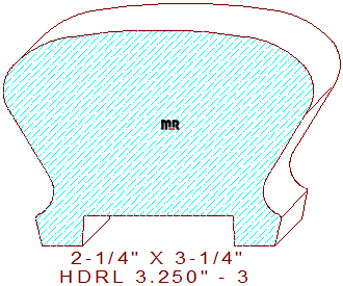

This attractive 3-1/4" - 3 handrail measures 3.250" wide by 2.250" thickness, enabling the pattern to be machined out of glued-up pieces of four-, five-, or six-quarter lumber. The prepossessing profile consists of a three-tangent radius convex arc on top. The symmetrical sides contain a 3/8" convex arc and a 17/64" concave semicircle, tangent to an inward-angled line in the center. The lower portion retains decorative, outward angled lines with a 3/64" eased edge. The bottom has a 1-9/16" wide by 5/16" deep dado for inserting balusters, leaving a 7/16" shoulder on each edge of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.250
Depth of Cut: 0.541
Left Cutter Head
Thickness: 2.250
Depth of Cut: 0.541
Top Cutter Head
Width: 3.250
Depth of Cut: 0.500
Bottom Cutter Head
Width: 3.250
Depth of Cut: 0.312
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.00
$156.00
(Template not needed)
$251.00
$251.00
Total:
$857.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$211.00
$168.00
(Template not needed)
$267.00
$267.00
Total:
$913.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$229.00
$186.00
(Template not needed)
$291.00
$291.00
Total:
$997.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
