Handrail Moulding 3-3/8"

Handrail Moulding 3-3/8"

Handrail Moulding 3-3/8"

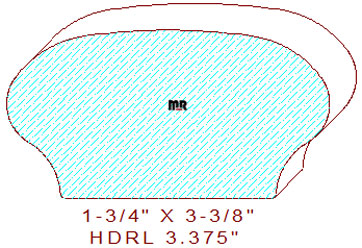

This decorative handrail moulding 3-3/8" measures 3.375" wide by 1.750" thickness. The graceful profile is comprised of a 6-3/16" radius arc on top, tangent off of a 1-3/32" semicircle that transitions into a 15/32" radius circle on the outer edges, these transform into a 43/64" cove creating a smooth finger grip area on both side of the design, the bottom dimension is 2-1/4" wide and has 3/64" eased edges.

Are you a moulding manufacturer? If so, please add your company to our millwork suppliers map, this valuable resource will help potential customers experience the craftsmanship of your creative woodworking shop. Did you know you can connect our profile catalog to your website? It's free, you don't even have to be a client of ours. You can't offer clients molding choices they don’t even know are available.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 3.375" / Depth of Cut = .365" (top knives).

Thickness = 1.750" / Depth of Cut = .757" (right blades) & .757" (left cutters), only one templates is needed to make the side knives.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
