Handrail 3-3/8" - 5

Handrail 3-3/8" - 5

Handrail 3-3/8" - 5

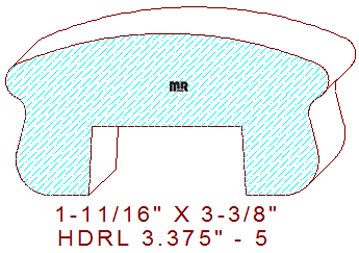

This beautiful 3-3/8" - 5 handrail measures 3.375" wide by 1.687" thickness; the design consists of an elliptical-shaped top with rounded radius edges that form a cyma reversa; this area will serve well for a finger grasping area, and the bottom is dadoed for 1-9/16" wide balusters.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.687
Depth of Cut: 0.687
Left Cutter Head
Thickness: 1.687
Depth of Cut: 0.687
Top Cutter Head
Width: 3.375
Depth of Cut: 0.437
Bottom Cutter Head
Width: 3.375
Depth of Cut: 0.718

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$174.60
$131.60
(Template not needed)
$249.25
$265.75
Total:
$821.20
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$184.35
$141.35
(Template not needed)
$265.75
$282.25
Total:
$873.69
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$194.09
$151.09
(Template not needed)
$282.25
$298.75
Total:
$926.19
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
