Handrail 3-3/8" - 6

Handrail 3-3/8" - 6

Handrail 3-3/8" - 6

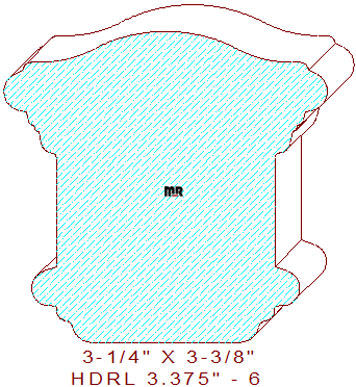

This definitive 3-3/8" - 6 handrail measures 3.375" wide by 3.250" tall. The symmetrical profile comprises a bidirectional wave-like arc with eased edges on top. The sides consists of an elliptical shaped half circle flanked by a series of tapered quarter round beads with a 1-3/16" tall finger grip area in the center, the lower section of the design is the same as the top, the bottom flat section is 1-17/32" wide.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 3.250
Depth of Cut: 1.093
Left Cutter Head
Thickness: 3.250
Depth of Cut: 1.093
Top Cutter Head
Width: 3.375
Depth of Cut: 0.323
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$259.00
$216.00
(Template not needed)
$249.25
Not Needed
Total:
$724.25
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$275.00
$232.00
(Template not needed)
$265.75
Not Needed
Total:
$772.75
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$291.00
$248.00
(Template not needed)
$282.25
Not Needed
Total:
$821.25
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
