Handrail 3-7/16"
Handrail 3-7/16"

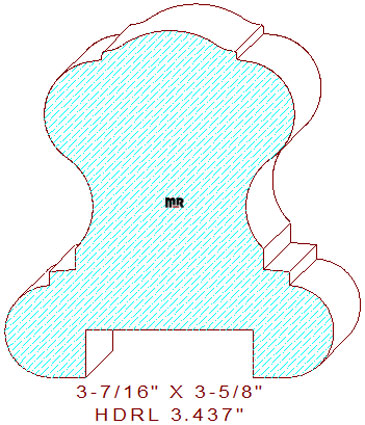

This gorgeous 3-7/16" handrail measures 3.437" wide by 3.625" tall, allowing the design to be milled from glued-up pieces of four, five, or six-quarter lumber. The chic profile is composed of a wave-like bidirectional cyma reversa flanked by a 3/32" vertical line with a 3/64" eased edge on top, the sides consist of a two tangent radius ear shaped finger gripping area with a 7/32" vertical line in the center, joined to a 17/64" wide by 9/64" tall perpendicular lines with a 31/32" tall half circle on the bottom side edge. The dado dimension for the balusters or balustrade is 1-3/4" wide by 1/2" deep.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 3.625
Depth of Cut: 0.918
Left Cutter Head
Thickness: 3.625
Depth of Cut: 0.918
Top Cutter Head
Width: 3.437
Depth of Cut: 0.680
Bottom Cutter Head
Width: 3.437
Depth of Cut: 0.500
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$288.00
$245.00
(Template not needed)
$277.47
$260.72
Total:
$1071.20
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$305.50
$262.50
(Template not needed)
$294.22
$277.47
Total:
$1139.69
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$331.75
$288.75
(Template not needed)
$319.34
$302.59
Total:
$1242.44
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
