Handrail 3-7/16" - 1

Handrail 3-7/16" - 1

Handrail 3-7/16" - 1

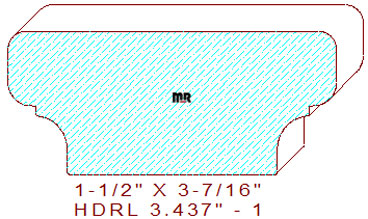

This lovely 3-7/16" - 1 decking handrail measures 3.437" wide by 1.500" thickness, necessitating the use of eight-quarter lumber for milling; the width is adjustable to any desired size because it is milled from both the right and left vertical cutter heads on the moulder. The standard profile is composed of a 25/32" tall vertical line segment on the sides with a 3/16" rounded edge on top and a 1/4" radius edge below, connected to a 3/32" tall vertical line joined to a 5/8" tall congee derived from an 11/32" cove with a 3/64" eased edges on the bottom of the design.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.500
Depth of Cut: 0.814
Left Cutter Head
Thickness: 1.500
Depth of Cut: 0.814
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$164.50
$121.50
(Template not needed)
Not Needed
Not Needed
Total:
$286.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$173.50
$130.50
(Template not needed)
Not Needed
Not Needed
Total:
$304.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$182.50
$139.50
(Template not needed)
Not Needed
Not Needed
Total:
$322.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
