Handrail 3-1/2"

Handrail 3-1/2"

Handrail 3-1/2"

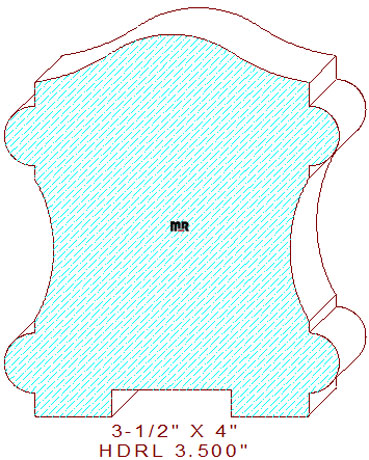

This stylish 3-1/2" handrail measures 3.500" wide by four inches tall, necessitating glued-up pieces of four-, five-, or six-quarter lumber for milling on an industrial molder. The beautifully symmetrical design is composed of a bidirectional wave-like cyma reversa derived from a 1-1/8" radius arc and two 1-7/8" concave semicircles on the top, the sides consist of two 5/8" tall half-round beads, flanked by small lines segments with 3/64" eased edges, joined to a 1-1/2" radius concave cove, providing the lovely railing with a smooth but firm gripping area when ascending or descending a staircase, the bottom of the design retains a 1-1/4" wide by 9/32" deep dado for mounting hardware or balusters.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 4.000
Depth of Cut: 0.513
Left Cutter Head
Thickness: 4.000
Depth of Cut: 0.513
Top Cutter Head
Width: 3.500
Depth of Cut: 0.516
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.281

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$280.50
$237.50
(Template not needed)
$255.50
$255.50
Total:
$1029.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$299.50
$256.50
(Template not needed)
$272.50
$272.50
Total:
$1101.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$318.50
$275.50
(Template not needed)
$289.50
$289.50
Total:
$1173.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
