Handrail 3-1/2" - 10

Handrail 3-1/2" - 10

Handrail 3-1/2" - 10

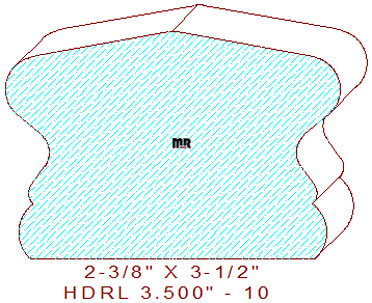

This beautiful 3-1/2" - 10 handrail measures 3.500' wide by 2-3/8" tall, necessitating glued-up pieces of four, five, or six-quarter lumber for milling. The elegantly chic profile is composed of a 1/4" rounded point flanked by two 10.264 bidirectional beveled lines on the top. The sides consist of an 11/32" radius arc in the upper portion, tangent to a 1/4" concave semicircle which forms the smooth gripping area in the center, transitioning into a 5/32" round-over and a 3/8" semicircle with 3/64" eased edges on the bottom of both side of the design.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 2.375
Depth of Cut: 0.437
Left Cutter Head
Thickness: 2.375
Depth of Cut: 0.437
Top Cutter Head
Width: 3.500
Depth of Cut: 0.364
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.25
$156.25
(Template not needed)
$255.50
Not Needed
Total:
$611.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$211.75
$168.75
(Template not needed)
$272.50
Not Needed
Total:
$653.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$224.25
$181.25
(Template not needed)
$289.50
Not Needed
Total:
$695.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
