Moulding Knives by Mirror Reflections

Moulding Knives
by Mirror Reflections
(801)451-5987

Search Our Moulding Knives Catalog by Category and Size

*Enter desired search sizes - use whole numbers & decimals

Handrail 3-1/2" - 15

Handrail 3-1/2" - 15

Handrail 3-1/2" - 15

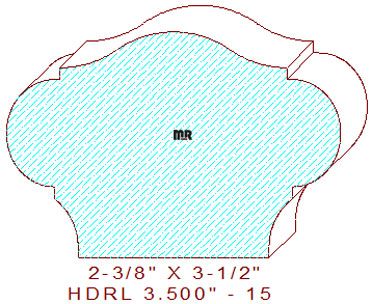

This Handrail 3-1/2" - 15 measures 3.500" wide by 2.375" thickness, the elegant symmetrical profile is comprised of a bidirectional cyma reversa on top, the sides consist of a half-round bead flanked by vertical fillets with a 5/8" radius cavetto/cove positioned on the bottom side of the pattern, the flat bottom could also be milled with a dado for balusters/ balustrade if desired.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 2.375
Depth of Cut: 0.750
Left Cutter Head
Thickness: 2.375
Depth of Cut: 0.750
Top Cutter Head
Width: 3.500
Depth of Cut: 0.375
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$211.75
$168.75
(Template not needed)
$255.50
Not Needed
Total:
$636.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$224.25
$181.25
(Template not needed)
$272.50
Not Needed
Total:
$678.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$236.75
$193.75
(Template not needed)
$289.50
Not Needed
Total:
$720.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
