Handrail 3-1/2" - 21

Handrail 3-1/2" - 21

Handrail 3-1/2" - 21

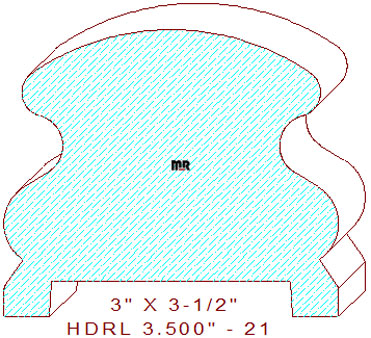

This beautifully large 3-1/2" - 21 handrail measures 3.500" wide by 3" thick, requiring the use of glued-up pieces of four, five, or six-quarter lumber for milling on an industrial molder. The elegant profile is composed of a 2-9/16" radius arc on the top, tangent to a series of wave-like concave and convex semicircular pieces creating a firm gripping area in the center of the design, the lower section consists of a beveled line with a 1/8" eased edge and a 5/16" tall vertical line segment, the bottom retains a 2-1/2" wide by 3/8" deep dado for the balusters.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 3.000
Depth of Cut: 0.616
Left Cutter Head
Thickness: 3.000
Depth of Cut: 0.616
Top Cutter Head
Width: 3.500
Depth of Cut: 0.606
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.375

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$230.50
$187.50
(Template not needed)
$255.50
$255.50
Total:
$929.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$245.50
$202.50
(Template not needed)
$272.50
$272.50
Total:
$993.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$260.50
$217.50
(Template not needed)
$289.50
$289.50
Total:
$1057.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
