Handrail 3-1/2" - 25

Handrail 3-1/2" - 25

Handrail 3-1/2" - 25

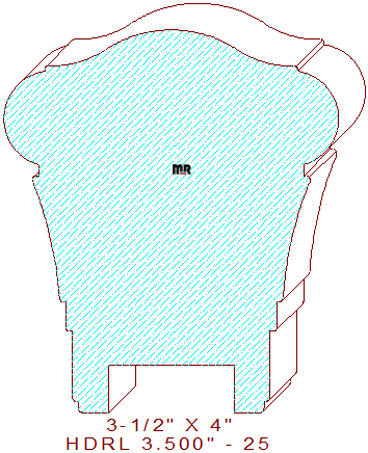

This decorative 3-1/2" - 25 handrail measures 3.500" wide by 4.000" tall, enabling the detail to be machined out of glued-up pieces of four, five, or six-quarter lumber. The stylish profile is composed of bidirectional three tangent radius wave-like arcs with a 1/16" vertical drop on the top, the sides consists of a 31/32" wide half round bead joined to a 1/8" sunk fillet that transitions into a 3-15/16" concave semicircle which creates a soft gripping area on the railing, the lower section is made up of a series of tiered perpendicular lines with a 1-5/16" wide by 1/2" deep dado for the balusters on the bottom.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 4.000
Depth of Cut: 0.970
Left Cutter Head
Thickness: 4.000
Depth of Cut: 0.970
Top Cutter Head
Width: 3.500
Depth of Cut: 0.376
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.500

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$299.50
$256.50
(Template not needed)
$255.50
$255.50
Total:
$1067.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$318.50
$275.50
(Template not needed)
$272.50
$272.50
Total:
$1139.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$337.50
$294.50
(Template not needed)
$289.50
$289.50
Total:
$1211.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
