Handrail 4" - 9
Handrail 4" - 9

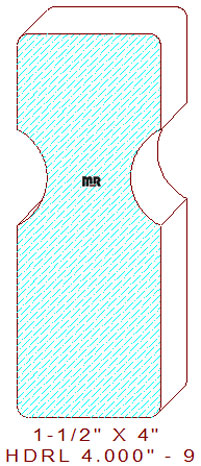

This rectangular 4" - 9 handrail measures 1.500" wide by 4.000" tall. The symmetrical profile is comprised of two-finger grip areas that measure 1" tall by 5/16" deep; they consist of a 9/16" radius cove located 1" down from the top surface. All four corners of the railing retain 1/8" eased edges milled by the right and left vertical cutter heads. This design feature enables the width to be changed to any desired size widths up to 6-3/8" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.500
Depth of Cut: 0.312
Left Cutter Head
Thickness: 1.500
Depth of Cut: 0.312
Top Cutter Head
Width: 4.000
Depth of Cut: 0.312
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.312
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$160.00
$117.00
(Template not needed)
$290.00
$247.00
(Template not needed)
Total:
$814.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$169.00
$126.00
(Template not needed)
$309.00
$266.00
(Template not needed)
Total:
$870.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$182.50
$139.50
(Template not needed)
$337.50
$294.50
(Template not needed)
Total:
$954.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
