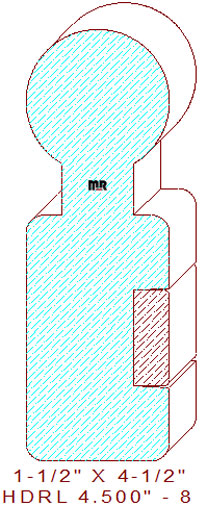

This institutional 4-1/2" - 8 handrail measures 1.500" wide by 4.500" tall, necessitating the use of eight-quarter lumber for milling on an industrial moulder. The Americans with Disabilities Act (ADA) approved profile is composed of a 1-1/2" round top joined to a 17/32" tall by 3/4" thick finger grip area in the upper section, the remaining 2-9/16" tall portion of the design consists of a rectangular shaped block with 3/16" eased edges, on one face it retains a one inch wide by 3/8" deep dado for a fillet to be installed after securing the railing to the wall brackets, this decorative filler is included in the downloadable dxf file available for purchase below.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.500
Depth of Cut: 0.906
Left Cutter Head
Thickness: 1.500
Depth of Cut: 0.000
Top Cutter Head
Width: 4.500
Depth of Cut: 0.375
Bottom Cutter Head
Width: 4.500
Depth of Cut: 0.375
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$169.00
Not Needed
$316.00
$273.00
(Template not needed)
Total:
$758.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$178.00
Not Needed
$337.00
$294.00
(Template not needed)
Total:
$809.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$191.50
Not Needed
$368.50
$325.50
(Template not needed)
Total:
$885.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
