Handrail 4-3/4"

Handrail 4-3/4"

Handrail 4-3/4"

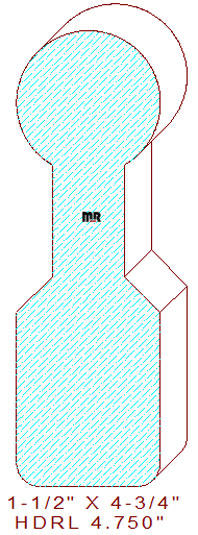

This tall decorative 4-3/4" handrail measures 1.500" wide by 4.750" tall, requiring the use of eight-quarter lumber for milling on an industrial molder. The attractive profile is composed of a 1-1/2" wide by 1-13/32" tall full circle on top, joined to a sturdy 1-1/32" tall by 3/4" wide finger gripping area in the upper portion of the design, attached to two 3/8" broad forty-five-degree beveled lines that transition the width back to full size with 1/4" round-overs at the bottom of the pattern.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.500
Depth of Cut: 0.843
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.750
Depth of Cut: 0.375
Bottom Cutter Head
Width: 4.750
Depth of Cut: 0.375

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$164.50
Not Needed
$318.00
$275.00
(Template not needed)
Total:
$757.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$173.50
Not Needed
$340.00
$297.00
(Template not needed)
Total:
$810.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$182.50
Not Needed
$362.00
$319.00
(Template not needed)
Total:
$863.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
