Handrail 4-3/4" - 1

Handrail 4-3/4" - 1

Handrail 4-3/4" - 1

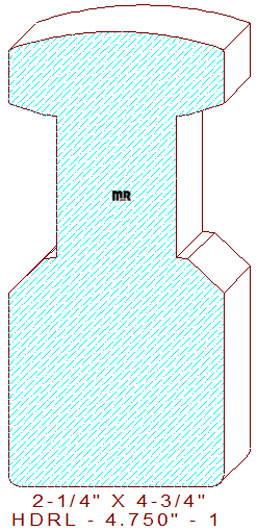

This unique 4-3/4" - 1 handrail measures 2.250" wide by 4.750" tall, permitting the pattern to be machined from solid ten-quarter or glued-up pieces of four and five-quarter lumber. The beautifully sophisticated profile is composed of a 3-15/32" radius elliptical shaped top with 3/64" eased edges for comfort when holding the railing. The sides are comprised of 9/16" tall line segments with inward beveled edges that transition into a 1-1/2" tall gripping area in the upper portion, the lower section retains 1/8" wide horizontal lines with an outward beveled edge, joined to 2-1/64" tall lines with a 1/8" round-over's at the bottom of the design.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 2.250
Depth of Cut: 0.403
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.750
Depth of Cut: 0.500
Bottom Cutter Head
Width: 4.750
Depth of Cut: 0.500

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$150.00
(Template not needed)
Not Needed
$318.00
$318.00
Total:
$786.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$162.00
(Template not needed)
Not Needed
$340.00
$340.00
Total:
$842.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$174.00
(Template not needed)
Not Needed
$362.00
$362.00
Total:
$898.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
