Handrail 5" - 14

Handrail 5" - 14

Handrail 5" - 14

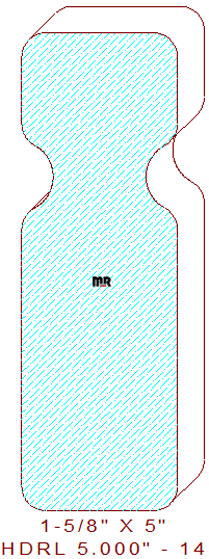

This tall 5" - 14 handrail measures 1-5/8" wide by 5.000" tall, requiring the use of eight-quarter lumber for milling on a commercial-grade molder. The high slender profile is composed of a 1/4" round-over on all four edges of the pattern. The finger gripping area consists of a 21/64" deep, 3/8" radius concave arc, flanked by 1/4" rolled edges that are centered 1-1/2" from the top. There is a knife design without the bottom radiuses included in the downloadable DXF file; this will allow multiple width sizes if necessary.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.000
Depth of Cut: 0.437
Bottom Cutter Head
Width: 5.000
Depth of Cut: 0.437

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$330.50
$287.50
(Template not needed)
Total:
$618.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$353.50
$310.50
(Template not needed)
Total:
$664.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$376.50
$333.50
(Template not needed)
Total:
$710.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
