Handrail 5-1/8"

Handrail 5-1/8"

Handrail 5-1/8"

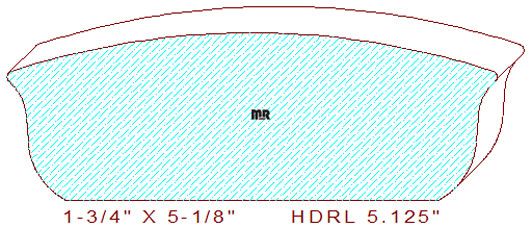

This broad 5-1/8" handrail measures 5.125" wide by 1.750" thick. This design will require eight-quarter lumber to properly mill this detail on an industrial-style molder. The profile is comprised of an 8.140" radius arched top. The symmetrical sides consist of a cyma recta that creates a nice finger grip area. The profile at the widest point each has a 1/16" radius to soften the edge.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.750
Depth of Cut: 0.781
Left Cutter Head
Thickness: 1.750
Depth of Cut: 0.781
Top Cutter Head
Width: 5.125
Depth of Cut: 0.469
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$178.00
$135.00
(Template not needed)
$336.75
Not Needed
Total:
$649.75
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$188.00
$145.00
(Template not needed)
$360.25
Not Needed
Total:
$693.25
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$198.00
$155.00
(Template not needed)
$383.75
Not Needed
Total:
$736.75
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
