Handrail 5-3/16"
Handrail 5-3/16"

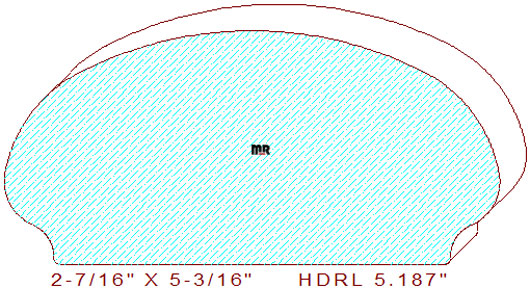

This large 5-3/16" mushroom-top handrail measures 5.187" width by 2.437" thickness, requiring a 5-7/16" wide blank of glued-up pieces of four, five, or six-quarter lumber for milling on a commercial moulder. The semi-elliptical-shaped profile comprises a 3-31/32" radius convex arc in the center. Three tangent radiuses flank the middle shaped like an ear, creating a comfortable grip area with a 1/16" rolled bottom corner on each side edge of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.437
Depth of Cut: 1.000
Left Cutter Head
Thickness: 2.437
Depth of Cut: 1.000
Top Cutter Head
Width: 5.187
Depth of Cut: 0.621
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$221.47
$178.47
(Template not needed)
$351.72
Not Needed
Total:
$751.67
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$234.22
$191.22
(Template not needed)
$375.47
Not Needed
Total:
$800.91
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$253.34
$210.34
(Template not needed)
$411.09
Not Needed
Total:
$874.78
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
