Handrail 5-1/4" - 2

Handrail 5-1/4" - 2

Handrail 5-1/4" - 2

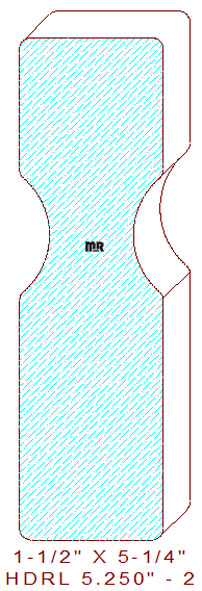

This symmetrical 5-1/4" - 2 handrail measures 5.250" tall by 1.500" wide. The tall rectangular profile is comprised of a 25/32" radius cavetto on both sides of the detail flanked by a 1-3/8" tall vertical fillet on top, with a 2-1/2" tall vertical fillet at the bottom, all four corners in the design have a 1/8" radius edge. The center dimension between the finger gripping area is 7/8" thickness.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.250
Depth of Cut: 0.313
Bottom Cutter Head
Width: 5.250
Depth of Cut: 0.313

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$343.00
$300.00
(Template not needed)
Total:
$643.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$367.00
$324.00
(Template not needed)
Total:
$691.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$391.00
$348.00
(Template not needed)
Total:
$739.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
