Handrail 5-3/8" - 2

Handrail 5-3/8" - 2

Handrail 5-3/8" - 2

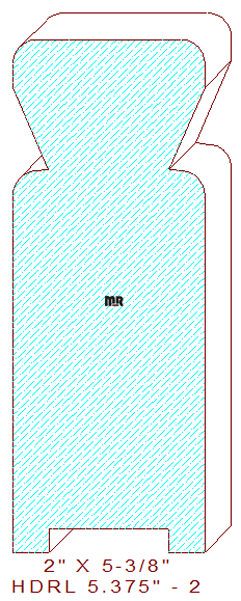

This 5-3/8" - 2 handrail measures 5.375" tall by 2.000" wide. The design comprises a 1-3/8" tall chamfered inset portion for finger grip when in use. All top edges are radiused for comfort and appeal, and the bottom is plowed for a 1-1/4" mounting bracket.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 2.000
Depth of Cut: 0.250
Top Cutter Head
Width: 5.375
Depth of Cut: 0.437
Bottom Cutter Head
Width: 5.375
Depth of Cut: 0.437

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$180.50
$349.25
$306.25
(Template not needed)
Total:
$836.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$191.50
$373.75
$330.75
(Template not needed)
Total:
$896.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$202.50
$398.25
$355.25
(Template not needed)
Total:
$956.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
