Handrail 5-7/16" - 1
Handrail 5-7/16" - 1

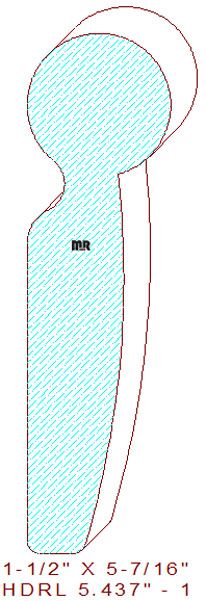

This fine-looking institutional 5-7/16" - 1 handrail measures 5-7/16" tall by 1-1/2" wide. The profile design is composed of a 3/4" radius full round on top that transitions into a cascading radius arc on the remaining portion of the detail with two eased edges on the bottom.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.500
Depth of Cut: 0.533
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.437
Depth of Cut: 1.171
Bottom Cutter Head
Width: 5.437
Depth of Cut: 0.389
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.00
Not Needed
$415.22
$365.72
Total:
$941.94
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$170.00
Not Needed
$439.97
$390.47
Total:
$1000.44
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$183.50
Not Needed
$477.09
$427.59
Total:
$1088.18
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
