Handrail 5-1/2" - 11
Handrail 5-1/2" - 11

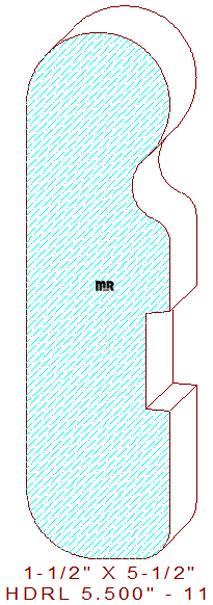

This decorative 5-1/2" - 11 handrail measures 1.500" wide by 5.500" tall, necessitating the use of eight-quarter lumber for milling horizontally flat. The functional guardrail is composed of a 3/4" radius bullnose on the top, the right side retains a 3/8" radius concave finger grip area with a 1/4" rounded corner, there is a 1" tall by 1/4" deep dado for the mounting equipment located 1-9/16" off the bottom edge, the bottom sides retain a 3/4" and 5/16" round-overs.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.500
Depth of Cut: 0.906
Left Cutter Head
Thickness: 1.500
Depth of Cut: 0.906
Top Cutter Head
Width: 5.500
Depth of Cut: 0.393
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$169.00
$126.00
(Template not needed)
$368.00
Not Needed
Total:
$663.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$178.00
$135.00
(Template not needed)
$393.00
Not Needed
Total:
$706.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$191.50
$148.50
(Template not needed)
$430.50
Not Needed
Total:
$770.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
