Handrail 5-1/2" - 12
Handrail 5-1/2" - 12

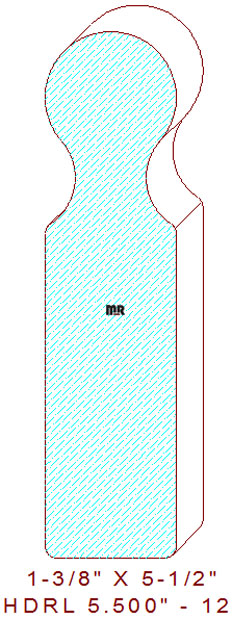

This 5-1/2" - 12 handrail measures 1-3/8" wide by 5-1/2" tall. The large handrail is comprised of an 11/16" radius round top that transitions inward 5/16" on each side, creating a smooth 3/4" thickness finger grip area, located 1-1/2" on center from the top, the bottom of the pattern is 3-1/2" tall with 1/8" radiuses on all four corners of the detail.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.375
Depth of Cut: 0.468
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.500
Depth of Cut: 0.500
Bottom Cutter Head
Width: 5.500
Depth of Cut: 0.500
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$153.50
Not Needed
$368.00
$325.00
(Template not needed)
Total:
$846.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$162.00
Not Needed
$393.00
$350.00
(Template not needed)
Total:
$905.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$174.75
Not Needed
$430.50
$387.50
(Template not needed)
Total:
$992.75
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
