Handrail 5-1/2" - 2

Handrail 5-1/2" - 2

Handrail 5-1/2" - 2

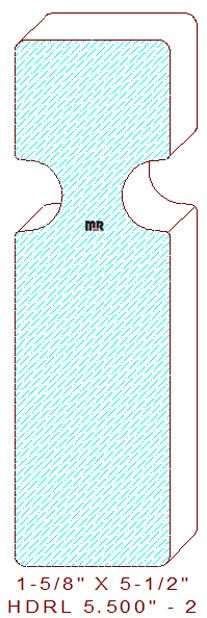

This 5-1/2" - 2 handrail measures 1.625" wide by 5-1/2" tall, the quadrilateral design has a 1/8" radius on all corners, the fluted shaped finger gripping area is positioned 1-5/8" on center from the top and measures 3/4" wide by 1/2" deep. There are two template designs in the downloadable dxf file, the radiused edges will be milled from the right and left vertical moulder spindles and the remain profile is milled from the top and bottom horizontal moulder spindles, this design allows versatility to alter the sizes in height if desired.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.312
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.500
Depth of Cut: 0.500
Bottom Cutter Head
Width: 5.500
Depth of Cut: 0.500

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
Not Needed
$355.50
$312.50
(Template not needed)
Total:
$829.75
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
Not Needed
$380.50
$337.50
(Template not needed)
Total:
$889.25
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
Not Needed
$405.50
$362.50
(Template not needed)
Total:
$948.75
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
