Handrail 5-1/2" - 3
Handrail 5-1/2" - 3

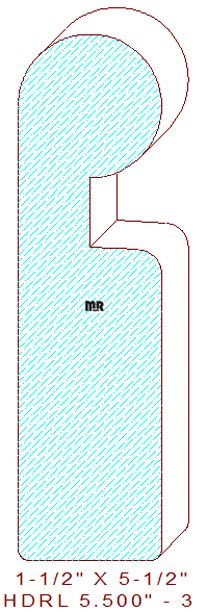

This bold 5-1/2" - 3 handrail measures 5.500" tall by 1.500" wide. The profile is comprised of a 3/4" radius rounded top with an attached 3/4" wide by 3/4" deep finger grasping area, the bottom edges of the railing retain a 1/8" radius.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.500
Depth of Cut: 0.938
Left Cutter Head
Thickness: 1.500
Depth of Cut: 0.312
Top Cutter Head
Width: 5.500
Depth of Cut: 0.750
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$169.00
$160.00
$393.00
Not Needed
Total:
$722.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$178.00
$169.00
$418.00
Not Needed
Total:
$765.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$191.50
$182.50
$455.50
Not Needed
Total:
$829.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
